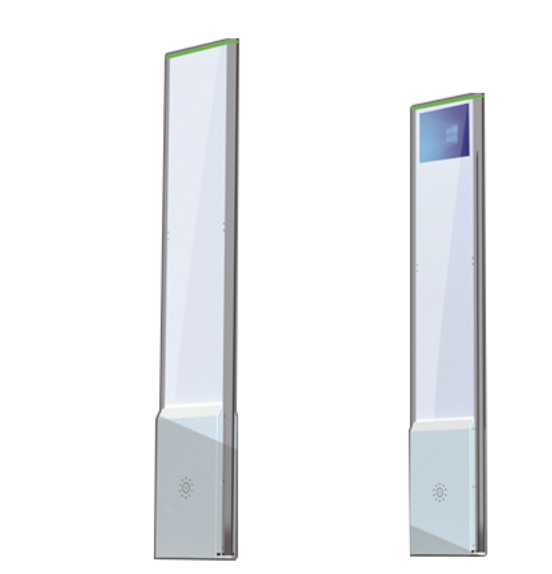

一、產品介紹/Product introduction：

1.1、FU-TD-13智能RFID門禁是一款對粘貼有符合EPC C1 G2（ISO18000-6C）協議的RFID標簽的資產（圖書、檔案或其他高值資產）進行防盜管理的設備。

1.2、FU-TD-13智能RFID門禁主要由RFID讀寫器、RFID天線及結構件組成。產品造型輕薄時尚，天線部分厚度僅32mm。

1.3、FU-TD-13智能RFID門禁采用航空鋁材、亞克力組成?？捎行诤系綀D書館，倉庫，辦公樓等環境系統中，常規款為離線工作模式。

1.4、產品采用了高增益的專用天線，在保證標簽識別準確率的情況下，能有效控制誤讀范圍。

1.5、產品可廣泛適用于各類物流、倉儲、圖書、檔案、人員考勤的管理。

1.1. FU-TD-13 intelligent RFID access control is a device for anti-theft management of assets (books, archives or other high-value assets) with RFID tags conforming to EPC C1 G2(ISO18000-6C) protocol.

1.2. FU-TD-13 intelligent RFID access control is mainly composed of RFID reader, RFID antenna and structural parts. The product is light and stylish, and the thickness of the antenna part is only 32 mm.

1.3. FU-TD-13 intelligent RFID access control is made of aviation aluminum and acrylic. Can be effectively integrated into environmental systems such as libraries, warehouses, office buildings, etc., and the conventional model is offline.

1.4. The product adopts a special antenna with high gain, which can effectively control the misreading range while ensuring the accuracy of tag identification.1.5, the product can be widely used in all kinds of logistics, warehousing, books, files, personnel attendance management.

二、產品功能/product function：

• 支持 EPC C1 G2（ISO18000-6C）協議；

  Support EPC C1 G2(ISO18000-6C) protocol;

• 輸出功率最大支持 33dbm，功率大小可調（范圍為 0 -33dBm）；

  The maximum output power is 33dbm, and the power size is adjustable (the range is 0-33 DBM);

• 可對檔案及資產防盜檢測，防止受限物品非法帶出管控區域；

  Anti-theft detection can be carried out on files and assets to prevent restricted items from being illegally taken out of the control area;

• 帶有聲光報警功能，報警音量可調；

  With acousto-optic alarm function, the alarm volume can be adjusted;

• 射頻系統部署有高增益天線，可有效檢出電子標簽并減少誤報；

  The RF system is equipped with a high gain antenna, which can effectively detect electronic tags and reduce false positives.

• 可通過網絡配置讀寫器；

  The reader can be configured through the network;

• 可選紅外運動方向判斷；

  Optional infrared motion direction judgment;

• 可選觸摸屏；

  Optional touch screen;

• 外觀時尚，組裝簡便

  Fashionable appearance and simple assembly.




三、產品參數/Product parameter

四、RFID通道門主副門禁組成部分

RFID access door main and auxiliary access control components：

1）主門禁包括門禁架1套、9dbi窄波束天線2根、4 port讀寫器1套、電源模塊1套、RS232串口1個、以太網口1個、饋線2根；

2）副門禁包括門禁架1套、9dbi窄波束天線2根、紅外對射1組、饋線2根、紅外連接線1組；

1) The main entrance guard includes 1 set of entrance guard frame, 2 9dbi narrow beam antennas, 1 set of 4 port reader/writer, 1 set of power module, 1 RS232 serial port, 1 Ethernet port and 2 feeders;

2) The auxiliary access control includes 1 set of access control frame, 2 9dbi narrow beam antennas, 1 set of infrared beam, 2 feeders and 1 set of infrared connecting wires;
